# Gaussian Filter generation using C/C++

Gaussian filtering is extensively used in Image Processing to reduce the noise of an image. In this article I will generate the 2D Gaussian Kernel that follows the Gaussian Distribution which is given

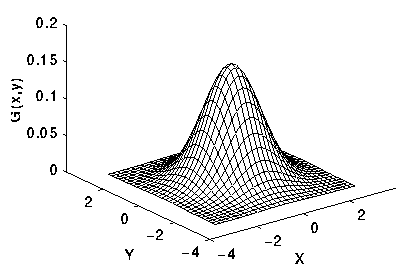

Where σ is the standard deviation of distribution, x is the distance from the origin in the horizontal axis, y is the distance from the origin in the vertical axis. The mean is assumed to be at origin O(0,0). The pictorial view of Gaussian Distribution for σ= 0 and mean at origin is

Source Code in C/C++

#include <iostream>
#include <cmath>
#include <iomanip>

using namespace std;

void createFilter(double gKernel[][5])
{
// set standard deviation to 1.0
double sigma = 1.0;
double r, s = 2.0 * sigma * sigma;

// sum is for normalization
double sum = 0.0;

// generate 5x5 kernel
for (int x = -2; x <= 2; x++)
{
for(int y = -2; y <= 2; y++)
{
r = sqrt(x*x + y*y);
gKernel[x + 2][y + 2] = (exp(-(r*r)/s))/(M_PI * s);
sum += gKernel[x + 2][y + 2];
}
}

// normalize the Kernel
for(int i = 0; i < 5; ++i)
for(int j = 0; j < 5; ++j)
gKernel[i][j] /= sum;

}

int main()
{
double gKernel[5][5];
createFilter(gKernel);
for(int i = 0; i < 5; ++i)
{
for (int j = 0; j < 5; ++j)
cout<<gKernel[i][j]<<"\t";
cout<<endl;
}
}


Output 5×5 Gaussian Kernel

References:

SHARE Gaussian Filter generation using C/C++
